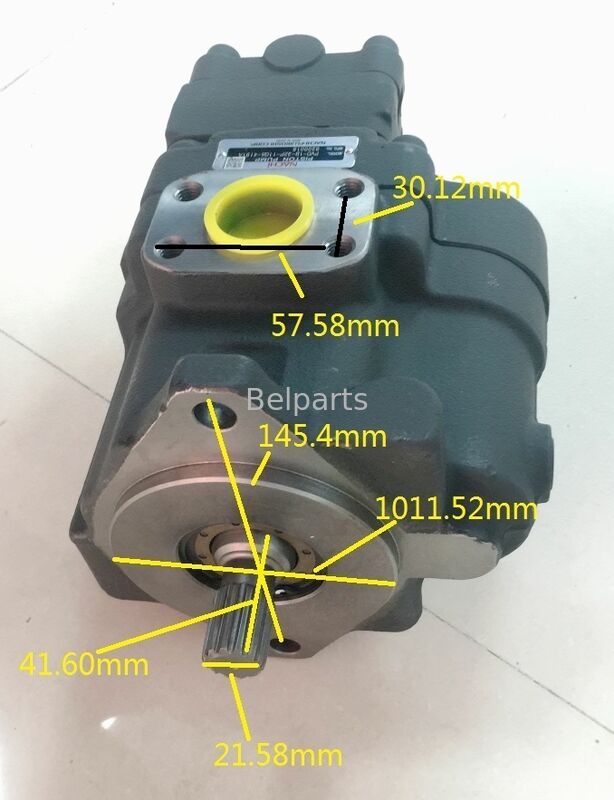

Name: ZX27U-2-3 ZX30U-2-3 ZX35U-2-3 Hydraulic Pump For Hitach Mini Excavator Parts PVD-1B-32P-11G5 Piston Main Pump 4642385 4642386 4466791 4605638 4699382
Brand: GUANGZHOU BELPARTS ENGINEERING MACHINERY LIMITED
SKU: ZX27U-2-3 ZX30U-2-3 ZX35U-2-3
Price: 475.00 USD
Availability: InStock

Σπίτι > προϊόντα > μέρη εκσκαφέων υδραυλικών αντλιών >

ZX27U-2-3 ZX30U-2-3 ZX35U-2-3 Hydraulic Pump For Hitach Mini Excavator Parts PVD-1B-32P-11G5 Piston Main Pump 4642385 4642386 4466791 4605638 4699382

Hitachi mini excavator hydraulic pump

PVD-1B-32P-11G5 piston main pump

ZX series excavator pump parts

Τόπος καταγωγής:

Κίνα

Μάρκα:

Belparts

Πιστοποίηση:

Αριθμό μοντέλου:

ZX27U-2-3 ZX30U-2-3 ZX35U-2-3

Μας ελάτε σε επαφή με

Ζητήστε ένα απόσπασμα

ZX27U-2-3 ZX30U-2-3 ZX35U-2-3 Hydraulic Pump For Hitach Mini Excavator Parts PVD-1B-32P-11G5 Piston Main Pump 4642385 4642386 4466791 4605638 4699382

Πληροφορίες για το προϊόν

Τύπος:

ΠΡΒ-1Β-32Π-11Γ5

Αριθμός ανταλλακτικού:

4642385 4642386 4466791 4605638 4699382

Όνομα μέρους:

Υδραυλική Εμβολοφόρο Αντλία

Εφαρμογή:

digger εκσκαφέων

Ποιότητα:

Αρχική ολοκαίνουργια

Εγγύηση:

12 μήνες

Αποστολή:

Sea / Air / Express DHL FEDEX UPS

Όροι πληρωμής και αποστολής

Ποσότητα παραγγελίας min

1 τεμ

Τιμή

Διαπραγματεύσιμα

Συσκευασία λεπτομέρειες

Ξύλινη συσκευασία θήκης

Χρόνος παράδοσης

3-7 μέρες

Όροι πληρωμής

L/C,D/A,D/P,T/T,Alibaba TRADE ASSURANCE,Western Union,PAYPAL

Δυνατότητα προσφοράς

100 ΤΕΜ / Μήνες

Συγγενικά προϊόντα

ZX27U-2-3 ZX30U-2-3 ZX35U-2-3 Hydraulic Pump For Hitach Mini Excavator Parts PVD-1B-32P-11G5 Piston Main Pump 4642385 4642386 4466791 4605638 4699382

Βρείτε την καλύτερη τιμή

SK50UR-2 K3SP30-110R-2C01 Hydraulic Pump For Mini Excavator Spare Parts PY10V00003F1 Main Piston Pump

Βρείτε την καλύτερη τιμή

ZX75UR-3 ZX75USK-3 ZX75US-3 ZX85USB-3 ZX85US-3 ZX75UST Swing Motor Reducer SG015 For Hitachi Mini Excavator 9270522 4684827 4470057 4429255 4469027

Βρείτε την καλύτερη τιμή

Swing Motor Reducer EX120-2 EX120-3 For Hitachi Mini Excavator 4334356 9111265 4241171 AP5S58 Rotary Device EX120-2M EX120K-3

Βρείτε την καλύτερη τιμή

Μας ελάτε σε επαφή με

+86 18520556972

belparts01@gmail.com

86-020-32384870

Επαφή τώρα

Περιγραφή προϊόντων

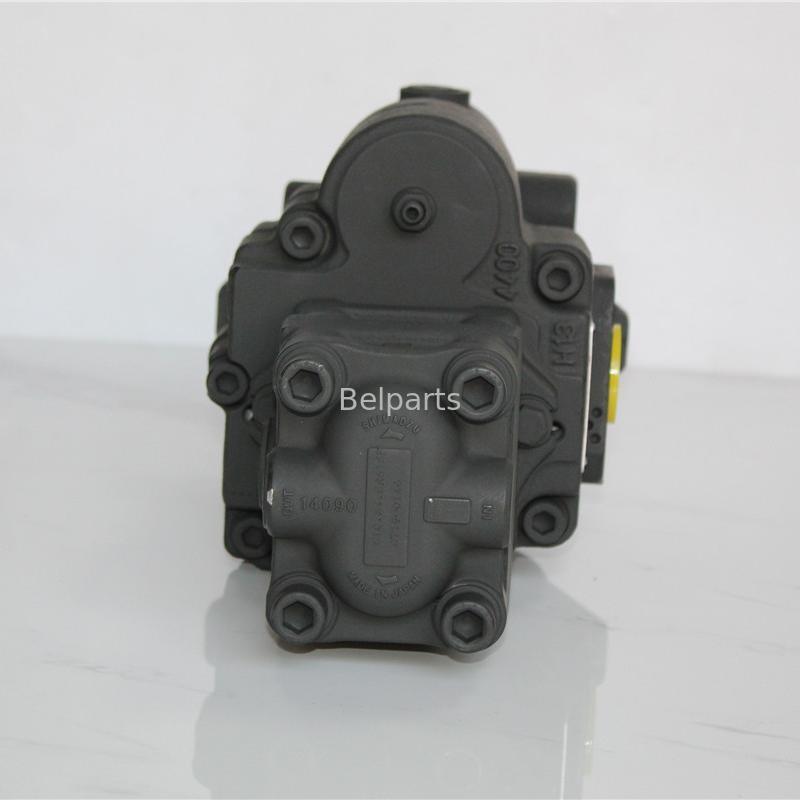

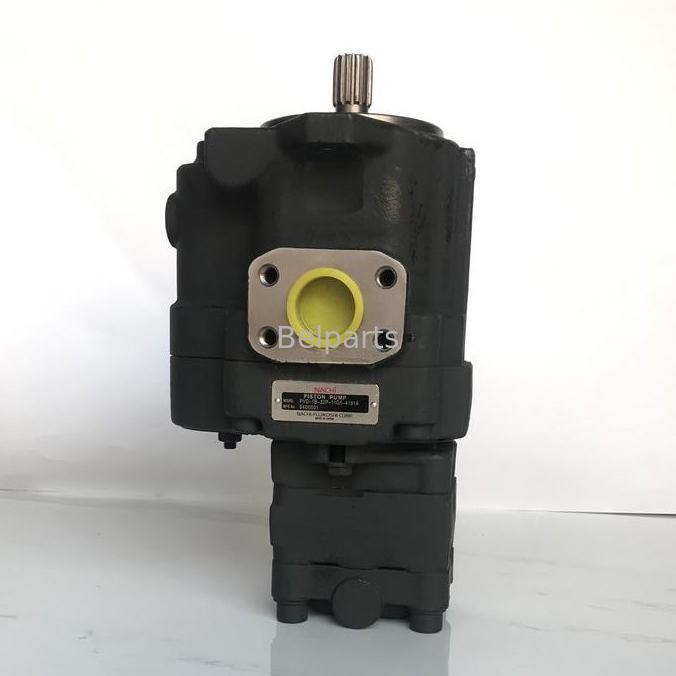

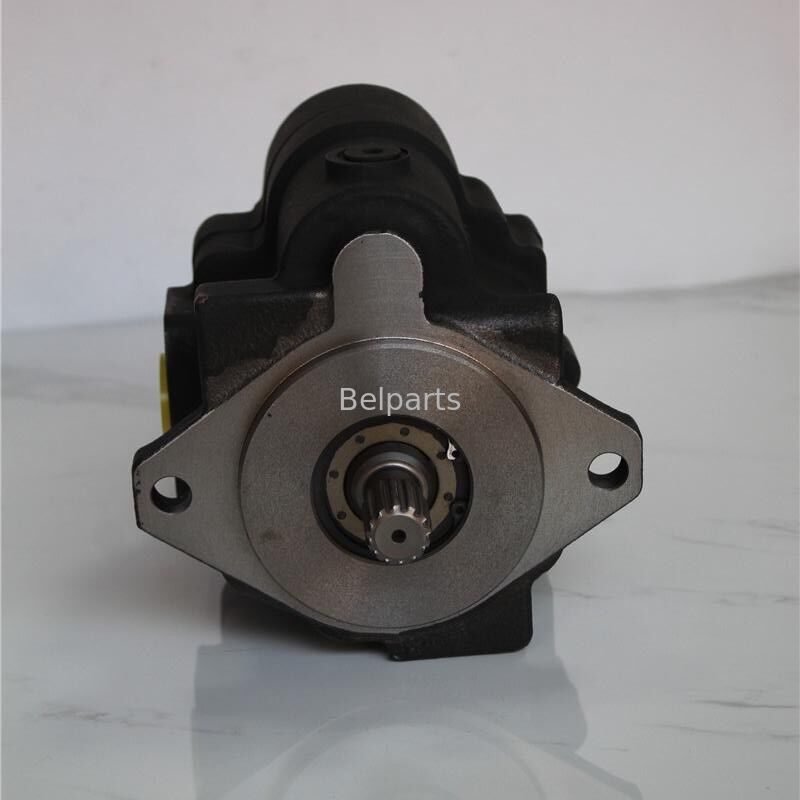

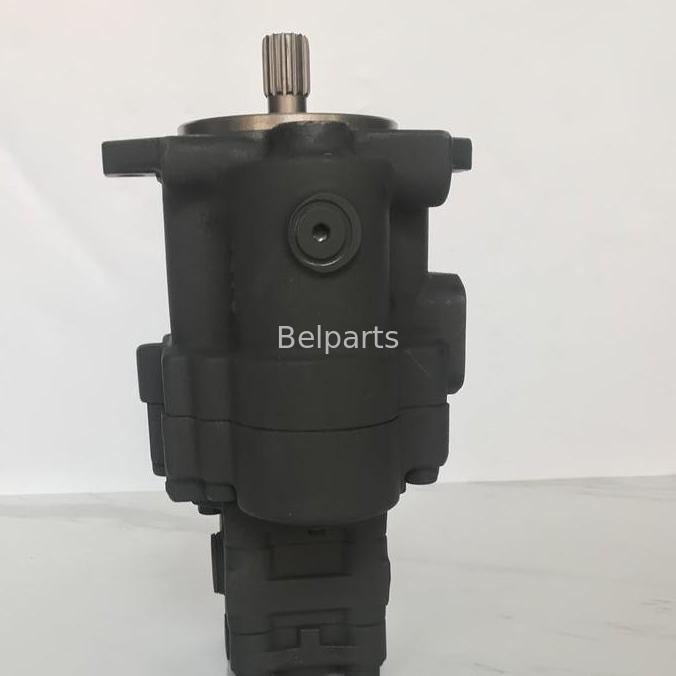

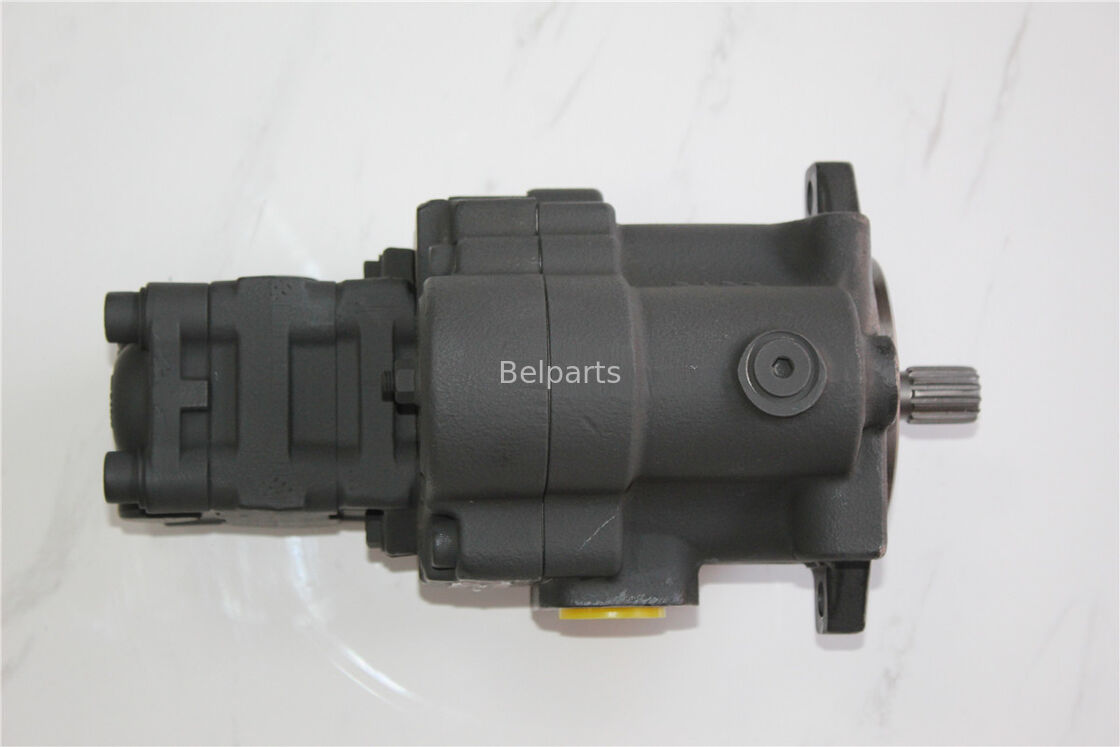

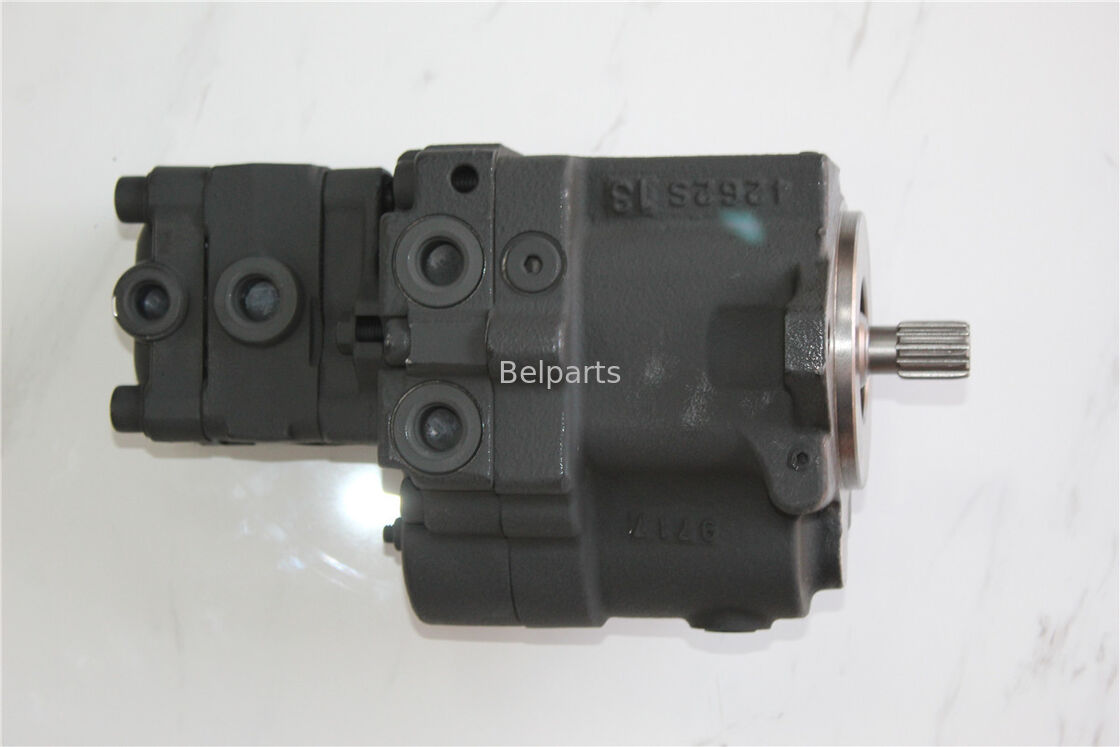

ZX27U-2-3 ZX30U-2-3 ZX35U-2-3 Hydraulic Pump For Hitachi Mini Excavator Parts PVD-1B-32P-11G5 Piston Main Pump

Product Specifications

Application	Excavator
Part Name	Hydraulic Piston Pump
Model	ZX27U-2-3, ZX30U-2-3, ZX35U-2-3
Part Number	4642385, 4642386, 4466791, 4605638, 4699382
Type	PVD-1B-32P-11G5
Warranty	12 months
Delivery Time	3-7 Days
Shipment	Express/Freight/Sea/Train
Quality	Original Brand New
MOQ	1 Piece
Payment Term	T/T, Trade Assurance, PayPal, etc.
Category	Construction Machinery Part

Component Parts List

#	Part No.	Description	Qty
	4466791	PUMP; PISTON	1
1	----	BODY	1
2	----	BODY	1
3	0733201	SHAFT	1
4	----	BLOCK	1
5	----	PLATE; VALVE	1
6	----	PISTON	10
7	----	SHOE	10
8	0733202	HOLDER; SHOE	1
9	0630604	HOLDER	1
10	0749301	PLATE; SWASH	1
11	0655905	NEEDLE	3
12	0647307	PIN	2
13	0477001	PACKING	1
14	0655906	SPRING	1
15	0733204	SPRING	1
18	0733205	HOLDER; SPRING	1
19	0733206	GUIDE; SPRING	1
20	0429816	PIN	1
21	0749302	ROD	1
24	0630614	RETAINER	2
25	0733208	PIN; STOPPER	1
26	0847401	PIN; STOPPER	1
27	0733209	PIN	1
30	0477002	BRG.; BALL	1
31	0429818	BRG.; NEEDLE	1
32	0630618	SEAL; OIL	1
33	0647314	SPRING	4
34	991722	RING; RETAINING	1
35	446751	RING; RETAINING	1
36	942517	RING; RETAINING	1
39	957366	O-RING	1
40	4506412	O-RING	2
42	0733210	PLUG	1
43	957366	O-RING	1
44	0429824	BOLT; SOCKET	5
49	0429712	PLUG	5
51	0733210	PLUG	1
56	0429826	PIN; SPRING	1
60	0630508	SCREW	1
61	0630509	NUT	1
62	0630510	WASHER; SEAL	1
65	0749304	PUMP; GEAR	1
65	0847402	PUMP; GEAR	1
66	0749305	COUPLING	1
67	0733213	COLLAR	1
68	0749306	BOLT	2
69	4506407	O-RING	1
70	0749307	WASHER	2
71	0733215	O-RING	1
72	4506408	O-RING	1
100	0749308	KIT; PISTON	1
101	0733217	PISTON ASS'Y	1
102	0733218	KIT; SEAL	1

Additional Component Parts

Pos.	Part No	Qty	Parts Name
	4668462	1	PUMP;PISTON
1	+++++++	1	BODY
2	+++++++	1	BODY
3	1184901	1	SHAFT
4	+++++++	1	CYL.
5	+++++++	1	PLATE
6	+++++++	1	PISTON
7	+++++++	1	SHOE
8	+++++++	1	HOLDER
9	+++++++	1	HOLDER
10	1184902	1	PLATE;SWASH
11	1184903	1	PISTON
12	1184904	1	PLUG
13	1184905	1	HOLDER
14	1184906	1	HOLDER;SPRING
15	1184907	1	PLATE;THRUST
16	+++++++	2	RETAINER
17	+++++++	3	NEEDLE
18	0473906	2	PIN
19	0630621	2	PIN
20	0429816	1	PIN
21	+++++++	1	SPRING
22	1184908	1	SPRING
23	1184909	1	SPRING
24	1184910	2	BUSHING
25	1184911	1	BRG.;BALL
26	+++++++	1	BRG.;NEEDLE
27	988850	1	RING;RETAINING
28	1184912	2	RING;RETAINING
29	+++++++	1	RING;RETAINING
30	0630617	1	ORIFICE
31	0429825	1	SCREW
32	1184913	8	BOLT;SOCKET
33	1184914	4	BOLT;SOCKET
34	0664917	1	PLUG
35	0630505	3	PLUG
36	1184915	1	SEAL;OIL
37	+++++++	7	PLUG
38	4506408	4	O-RING
39	957366	3	O-RING
40	984614	1	O-RING
41	4125485	1	O-RING
42	A811050	1	O-RING
43	A811075	1	O-RING
44	A811125	1	O-RING
45	+++++++	1	FILTER
46	4693312	1	VALVE
47	4693315	1	PUMP;GEAR
48	0749305	1	COUPLING
49	0971003	1	COLLAR
50	0749306	2	BOLT
51	0749307	2	WASHER
52	4506407	1	O-RING
53	4506408	1	O-RING
54	A811055	1	O-RING
90	4693313	1	KIT;CYL.
100	4693314	1	KIT;SEAL

More Branded Accessories Available

Hydraulic Parts Hydraulic Pump Final Drive Travel Reduction Swing Motor Swing Reduction Control Valve Gear Parts Slew Bearing Engine Assembly Hydraulic Cylinder ECU

Why Choose Us?

Quality Assurance
Fine Workmanship
Price Advantage
Stable Supply

Process Features

Standard production management
Advanced testing equipment
Heat Treatment Technology
Fitting of cylinder block and valve plate

About Our Factory

Belparts have a large workshop for excavator parts producing, from material cutting, welding, heating treating, assembling, debugging, painting, testing, every part we will confirm before leaving the factory.

Frequently Asked Questions

If I only know the excavator model, but can not offer parts No., what should I do?

If possible, you can send us pictures of old products, nameplate or the size for reference.

What is the warranty of the parts after I purchased hydraulic axial piston pump & motor spare parts?

The warranty is 6/12 Months based on the item details.

How can I pay the order?

We can receive payment through T/T, Western Union, Paypal (for small amount), Alibaba trade assurance.

When will get the items after I place order?

Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock, we will inform you before placing the order.

How can I do if there is something wrong with the items?

First of all, I have confidence in the quality of our products, if you really found something wrong, pls provide pictures for us and we will check. After it is confirmed, pls return to us, we will offer the correct item.

What is your main products?

We are specialized in the excavator spare parts, such as travel motor gearbox/ass'y/parts, swing gearbox/ass'y/motor/parts, hydraulic pump assy/parts and gear parts. If you need other excavator parts, we also can supply as your requirements.
