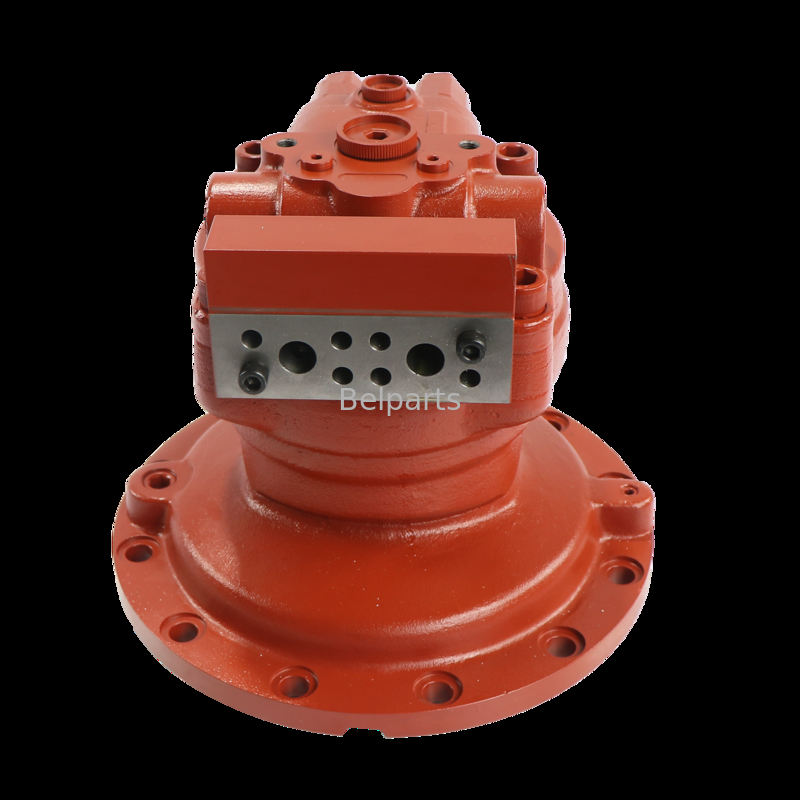

Name: Doosan Excavator M2X150 DH258 DH255 R290-7 swing motor assy Solar255 401-00352 K1011413A OEM
Brand: GUANGZHOU BELPARTS ENGINEERING MACHINERY LIMITED
SKU: M2X150 DH258 DH255 R290-7
Price: 475.00 USD
Availability: InStock

Σπίτι > προϊόντα > Μηχανή Assy ταλάντευσης >

Doosan Excavator M2X150 DH258 DH255 R290-7 swing motor assy Solar255 401-00352 K1011413A OEM

Doosan excavator swing motor assy

Solar255 swing motor assembly

OEM excavator swing motor

Τόπος καταγωγής:

Κατασκευάζεται στην Κίνα

Μάρκα:

Belparts

Αριθμό μοντέλου:

M2X150 DH258 DH255 R290-7

Μας ελάτε σε επαφή με

Ζητήστε ένα απόσπασμα

Doosan Excavator M2X150 DH258 DH255 R290-7 swing motor assy Solar255 401-00352 K1011413A OEM

Πληροφορίες για το προϊόν

Μοντέλο:

M5X130 EC210B EC200B EC220D EC480D

Αριθμός ανταλλακτικού:

Solar255 401-00352 K1011413A

Όνομα μοντέλου:

Assy Swing Motor Excavator

Αποκορύφωμα:

M2X150 DH258 DH255 R290-7 swing μοτέρ Solar255 401-00352 K1011413A

Όνομα μέρους:

Ο κινητήρας εκσκαφής

Εφαρμογή:

Εκσκαφέας, Μηχανολογικός εξοπλισμός

Όνομα προϊόντος:

Κινητήρας κούνιας

Κατάσταση:

νέο/χρησιμοποιημένο

Όροι πληρωμής και αποστολής

Ποσότητα παραγγελίας min

1 κομμάτι

Τιμή

Negotiable price

Συσκευασία λεπτομέρειες

Ξύλινη συσκευασία

Χρόνος παράδοσης

1-7 ημέρες

Όροι πληρωμής

T/T, PayPal και Trade Assurance

Δυνατότητα προσφοράς

1000 τεμάχια

Συγγενικά προϊόντα

Doosan Excavator M2X150 DH258 DH255 R290-7 swing motor assy Solar255 401-00352 K1011413A OEM

Βρείτε την καλύτερη τιμή

Belparts excavator M2X150 DH258 DH255 R290-7 swing motor Solar255 401-00352 K1011413A for doosan parts

Βρείτε την καλύτερη τιμή

Volvo excavator M5X130 EC210B EC200B EC220D swing motor assy EC480D VOE14552686

Βρείτε την καλύτερη τιμή

Belparts M5X130 EC210B EC200B EC220D swing motor EC480D VOE14552686 slewing motor

Βρείτε την καλύτερη τιμή

Μας ελάτε σε επαφή με

+86 18520556972

belparts01@gmail.com

86-020-32384870

Επαφή τώρα

Περιγραφή προϊόντων

Doosan Excavator M2X150 DH258 DH255 R290-7 swing motor assy Solar255 401-00352 K1011413A OEM

Product Specifications

Attribute	Value
Model	M2X150 DH258 DH255 R290-7
Part Number	Solar255 401-00352 K1011413A
Model Name	Excavator swing motor
Part Name	Swing motor assy
Brand	belparts
Condition	New/Used
Payment Methods	T/T, PayPal, Trade Assu

List of spare parts

#	Part No	Part Name	Comment	Qty.
-	K1011413A	DEVICE, TRAVEL	321 kg	2
RL	K9004992	REAR FLANGE ASS'Y		1
RL1	K9004993	KIT, REAR FLANGE	31 kg / 330330200	1
201	*NA00460	FLANGE, REAR		1
223	*NA01176	SPOOL, MAIN	HE4D01720E	1
RL2	1.416-00026	STOPPER ASS'Y		2
294	*NA01233	STOPPER		1
295	*NA01176	SPOOL, MAIN	HE4D01720E	1
296	*NA01182	SPRING	SIS	1
224	1.181-00059	PLUG, FOR MAIN		2
228	1.131-00058	SPRING, FOR MAIN		2
279	S8000321	O-RING		2
226	1.181-00067	PLUG, CHECK		2
227	1.420-00013	VALVE, CHECK		2
230	1.129-00006	SPRING, CHECK		2
234	S8002731	O-RING		2
221	2181-1890D4	PLUG, RECHECK	PF1/2	1
238	S8000181	O-RING	1BP18	1
252	2181-1116D2	PLUG, RECHECK		2
253	2181-1890D2	PLUG, SP	PF1/4	2
244	2181-1116D1	PLUG, RECHECK	97123-01111	5
268	S6250182	BALL, STEEL		2
242	1.420-00014	VALVE, REDUCING		1
272	1.427-00031	SEAT, VALVE REDUCING		1
276	1.115-00141	RING, REDUCING		1
275	1.131-00062	SPRING, REDUCING VALVE		1
218	1.427-00029	VALVE, SEAT T-TYPE		1
219	1.420-00009	VALVE, T-TYPE		1
220	1.131-00041	SPRING, T-TYPE		1
222	1.115-00139	RING, T-TYPE	100A2022-00	1
233	S8000091	O-RING	1BP9	1
263	422-00031	VALVE, TWO SPEED		1
264	K9001047	PLUG		1
265	S8000111	O-RING	1BP11	3
266	1.131-00099	SPRING, TWO SPEED		1
241	S5700891	PIN, PARALLEL		2
282	S2221471	BOLT, HEX SOCKET		9
297	1.415-00005	ORIFICE		1
M	K9004999	MOTOR PART		1
M1	1.441-00291	KIT, CYL'D BLOCK & PISTON	10 kg	1
104	*NA00073	BLOCK, CYL'D		1
110	1.114-00305	WASHER		2
114	1.129-00019	SPRING, FOR CYL'D		1
145	S6510700	RING, RETAINING		1
M11	1.409-00231	PISTON ASS'Y	3 kg	1 SET
151	1.109-00135	BEARING, ROLLER		6
107	1.412-00093	PLATE, RETAINER		1
108	1.148-00016	BALL, THRUST		1
M2	K9005000	PISTON ASS'Y		1
163	1.131-00042	SPRING		1
102	1.405-00022	SHAFT, MAIN	4 kg	1
103	K9005001	PLATE, SWASH	5 kg	1
109	1.412-00203	PLATE, TIMING	1 kg	1
115	1.412-00061	PLATE, FRICTION		3
116	1.412-00072	PLATE, MATING		4
112	K9005002	PISTON, PARKING	5 kg	1
113	1.131-00055	SPRING, P/PISTON		9
132	1.180-00631	SEAL, OIL		1
149	1.109-00147	BEARING, BALL		1
150	1.109-00026	BEARING, BALL		1
139	S8002101	O-RING		1
178	S8011951	O-RING		1
181	S5701242	PIN, PARALLEL		2
167	1.540-00006	PIVOT		2
R1	K9005003	RELIEF VALVE ASS'Y	HE3D02505C	2
301	1.429-00037	SEAT		1
302	*NA00890	PLUNGER	HE4D02504B	1
303	*NA00996	ROD	SIS	1
304	*NA00796	PISTON	SIS	1
305	*NA00079	BODY	HE4D01468C	1
306	*NA00843	PLUG	SIS	1
307	*NA01182	SPRING	SIS	1
308	*NA01133	SHIM	1.10 mm	1
309	S8000181	O-RING	1BP18	1
310	S8000181	O-RING	1BP18	1
311	S8060181	BACK UP RING(GN04080A0)JI	1BP18	1
900	2401-9082K	O-RING KIT, TRAVEL MOTOR		1 KIT

The swing motor is the core hydraulic actuator enabling 360° rotation of the excavator’s upper structure (cab + boom). Driven by hydraulic oil, its internal gears or pistons generate high torque to rotate the slewing ring smoothly, ensuring precise positioning and efficient operation.

High-pressure oil from the hydraulic pump enters the motor, rotating the rotor (e.g., axial piston or gerotor assembly). A planetary gear reducer then converts high-speed/low-torque output into low-speed/high-torque force, driving the slewing ring’s gear teeth. Cushion valves absorb shock during start/stop, ensuring motion stability.
