Name: SK450-6 SK450-6E Main Hydraulic Pump for KOBELCO Excavator Spare Part K5V200DTH K3V180DTH1MOR-9TOV LS10V00001F1 Axial Piston Pump
Brand: GUANGZHOU BELPARTS ENGINEERING MACHINERY LIMITED
SKU: SK450-6 SK450-6E
Price: 475.00 USD
Availability: InStock

Σπίτι > προϊόντα > μέρη εκσκαφέων υδραυλικών αντλιών >

SK450-6 SK450-6E Main Hydraulic Pump for KOBELCO Excavator Spare Part K5V200DTH K3V180DTH1MOR-9TOV LS10V00001F1 Axial Piston Pump

SK450-6 hydraulic pump for Kobelco excavator

Kobelco excavator axial piston pump

K5V200DTH hydraulic pump with warranty

Τόπος καταγωγής:

Κίνα

Μάρκα:

Belparts

Πιστοποίηση:

Αριθμό μοντέλου:

SK450-6 SK450-6E

Μας ελάτε σε επαφή με

Ζητήστε ένα απόσπασμα

SK450-6 SK450-6E Main Hydraulic Pump for KOBELCO Excavator Spare Part K5V200DTH K3V180DTH1MOR-9TOV LS10V00001F1 Axial Piston Pump

Πληροφορίες για το προϊόν

Όνομα μέρους:

κύρια υδραυλική αντλία

Τύπος:

K5V200DTH K3V180DTH1MOR-9TOV

Αριθμός ανταλλακτικών:

LS10V00001F1

Εφαρμογή:

Ερπυστριοφόρος εκσκαφέας

Ποιότητα:

Κατασκευάζεται στην Κίνα

Εγγύηση:

12 μήνες

Αποστολή:

Sea / Air / Express DHL FEDEX UPS

Όροι πληρωμής και αποστολής

Ποσότητα παραγγελίας min

1 ΤΕΜ

Τιμή

Διαπραγματεύσιμα

Συσκευασία λεπτομέρειες

Ξύλινη συσκευασία θήκης

Χρόνος παράδοσης

3-7 ημέρα

Όροι πληρωμής

L/C,D/A,D/P,T/T,Alibaba TRADE ASSURANCE,Western Union,PAYPAL

Δυνατότητα προσφοράς

100 ΤΕΜ / Μήνες

Συγγενικά προϊόντα

EC25 Hydraulic Main Pump for VOLVO Excavator Spare Parts NACHI PVD-19L3PS-8G-4609F Axial Piston Pump

Βρείτε την καλύτερη τιμή

EX200-2 EX220-2 Main Hydraulic pump for Hitachi Excavator spare parts 9101528 9135950 9101529 9135749 HPV091DW Axial Piston pump OEM

Βρείτε την καλύτερη τιμή

ZX110 ZX120 ZX130 ZX130H ZX130K ZX135 ZX135US Hydraulic Pump For Hitachi Excavator Parts 9197338 9193375 9197339 9227636 9192497 9227923 HPK055AT-RH17A HPK055 Piston Pump

Βρείτε την καλύτερη τιμή

SY285-9 Hydraulic Main pump for SANY Excavator spare parts K3V140DT-9TCM-17T Axial Piston pump Accessories manufacturer

Βρείτε την καλύτερη τιμή

Μας ελάτε σε επαφή με

+86 18520556972

belparts01@gmail.com

86-020-32384870

Επαφή τώρα

Περιγραφή προϊόντων

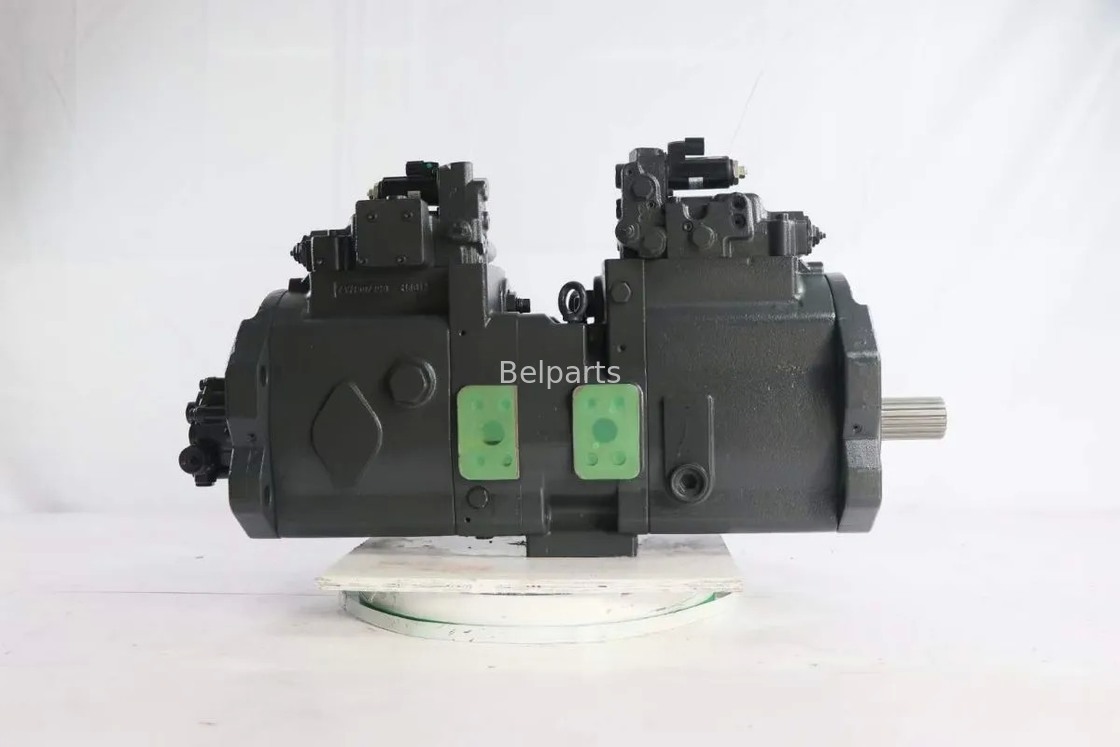

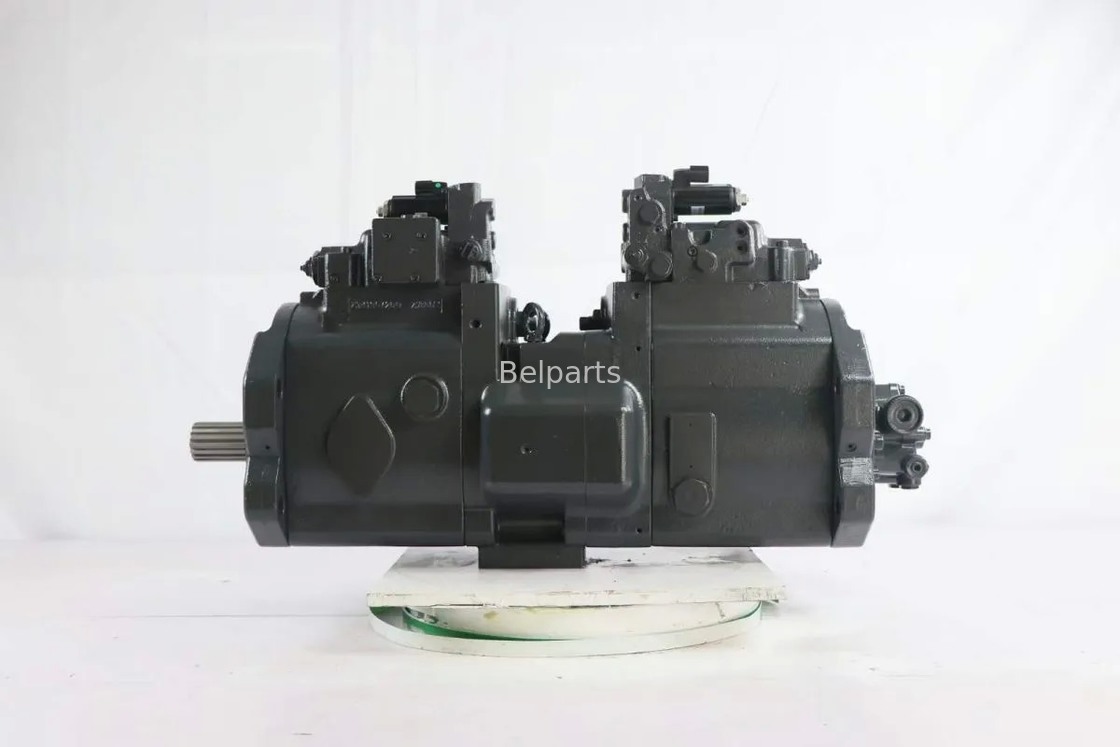

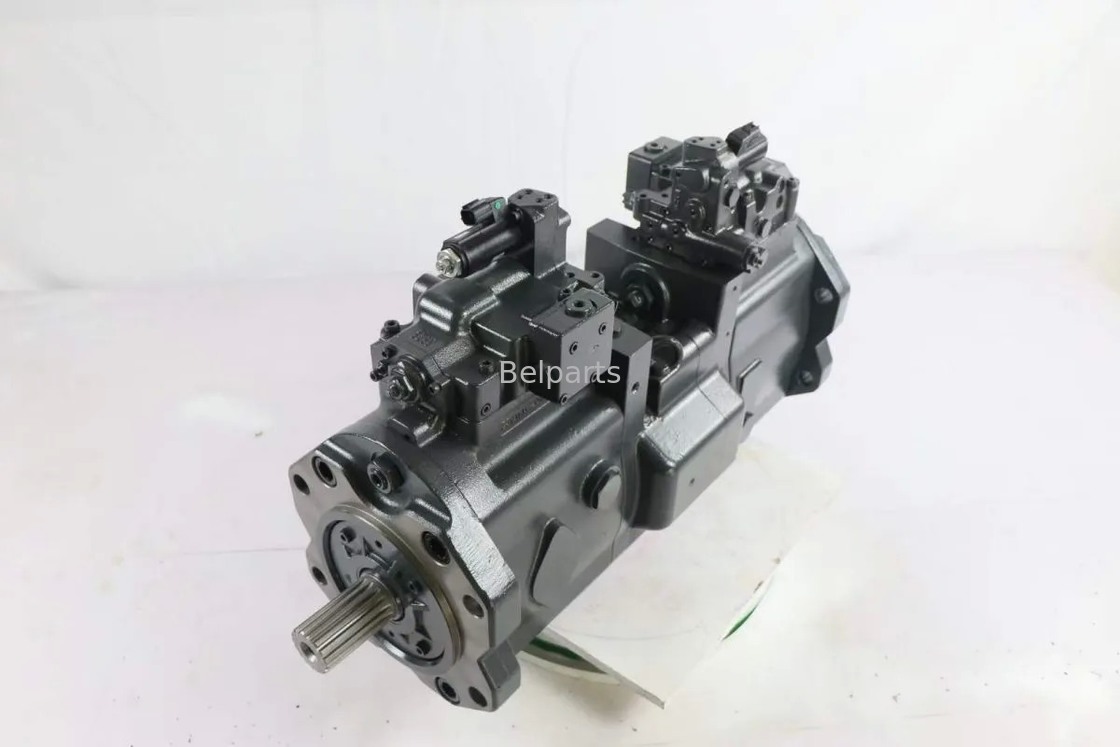

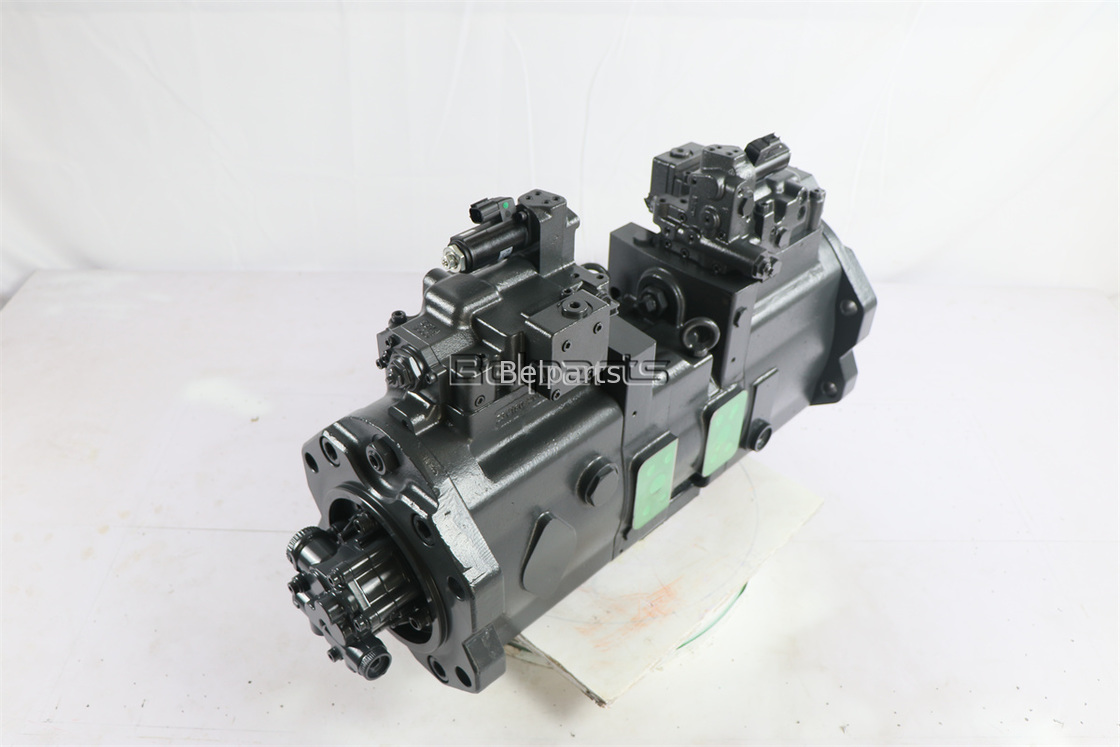

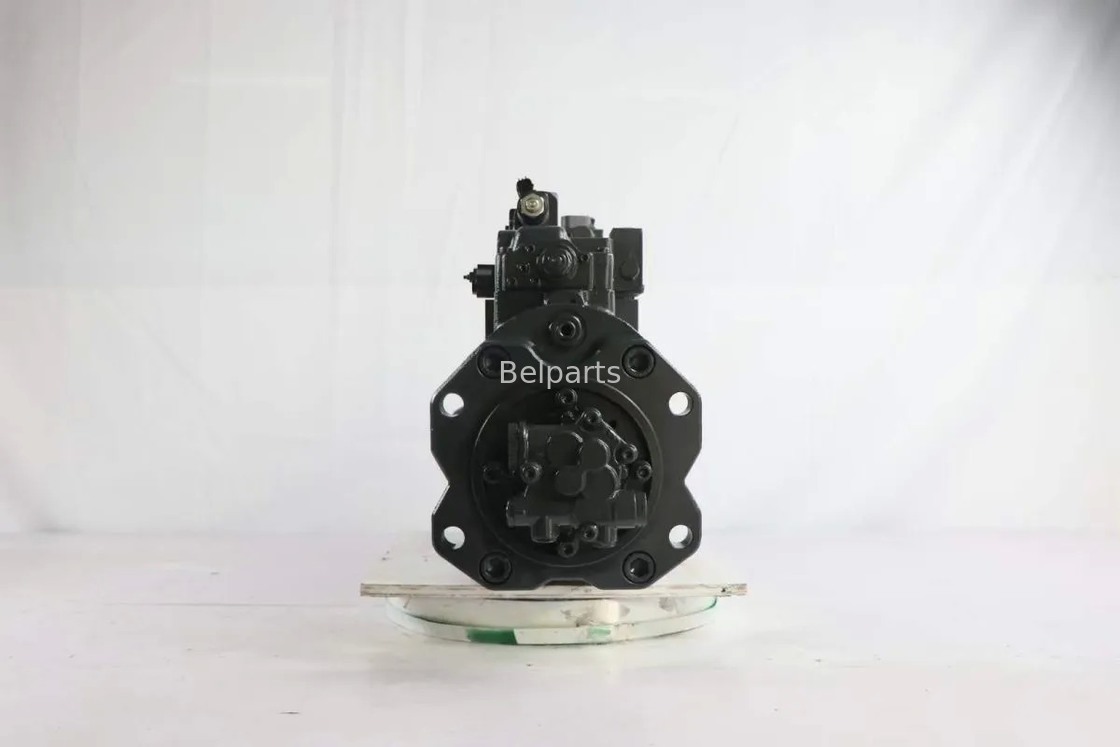

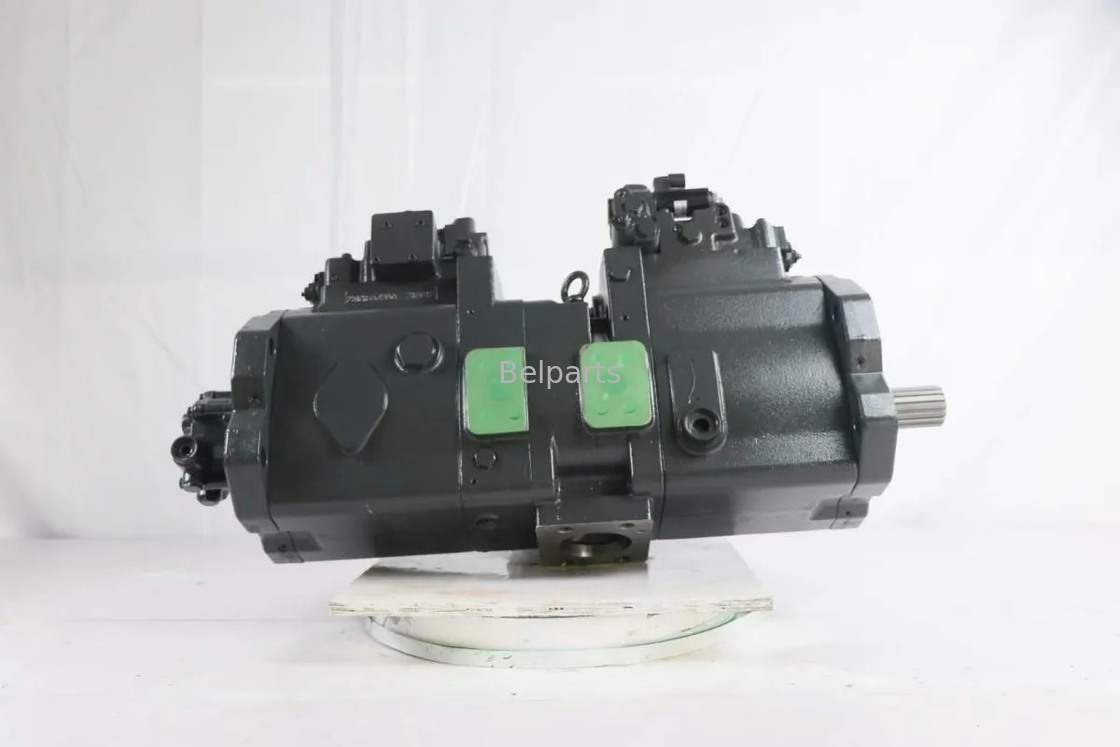

SK450-6 SK450-6E Main Hydraulic Pump for KOBELCO Excavator

Axial Piston Pump spare part K5V200DTH K3V180DTH1MOR-9TOV LS10V00001F1

Application	Excavator
Part name	Hydraulic Main pump
Machine model	SK450-6 SK450-6E
Type	K3V180DTH1MOR-9TOV
Parts Number	LS10V00001F1
Warranty	12 months
Delivery time	3-7 Days
Shipment	Express/freight/sea/train
Quality	Made in China
MOQ	1 Piece
Payment term	T/T, Trade Assurance, Paypal and etc
Category	Construction Machinery Part

Related Parts

LS10V00001F1 [1] PUMP
LS10V00001F5R [1] REMAN-HYD PUMP
LS10V00001FSC [1] CORE-HYDRAULIC PUMP
LS10V00002F1 [1] PUMP ASSY SEE P. LS10V00002-1
LS10V01001F1 [2] VOLTAGE REGULATOR
LS10V00003F1 [1] PUMP
YN35V00018F2 [2] SOLENOID VALVE

More Branded Accessories are Available

Related Products

Hydraulic Parts Hydraulic Pump Final Drive Travel Reduction Swing Motor Swing Reduction Control Valve Gear Parts Slew Bearing Engine Assembly Hydraulic Cylinder ECU

Component Details

Pos.	Part No	Qty	Parts name	Comments
*	2437U390F1	[1]	PUMP	KOB PUMP AS5Y Superseded by part number:2437U486F1
1.	2480U323F1	[1]	CONTROL AS5Y
2.	2416R481F1	[1]	HANGER	KOB
3.	24100R232F1	[2]	ROTARY DIVIDER	KOB
4.	2414R430F1	[1]	COVER ASSY
5.	2410R335F1	[1]	CASE	KOB
5-1.	N5	[1]	NOT 5OLD SEPARAT	CON CASE
5-2.	ZR26X06200	[1]	SNAP RING	KOB
5-3.	NSS	[1]	NOT 5OLD SEPARAT	CON SEAL,OIL
5-4.	2410R33554	[1]	O-RING	KOB
6.	2437U386F1	[1]	PUMP	HIT
7.	NSS	[1]	NOT SOLD SEPARAT	CON SHAFT
8.	2437U39058	[1]	CONTACT PLATE	KOB
9.	NSS	[1]	NOT 5OLD SEPARAT	CON BEARING
10.	2414R26853	[2]	PIN
11.	2437U390511	[1]	SHIM	KOB SHIM
12.	ZR16X02800	[1]	SNAP RING	KOB
13.	2437U390513	[1]	PLUG
14.	ZD12P01100	[1]	O-RING	KOB ID 10.8mmxOD 13.2mm
15.		[1]	NOT SOLD SEPARAT	CON

Why Choose Us?

Quality Assurance
Fine Workmanship
Price Advantage
Stable Supply

Process Features

Standard production management
Advanced testing equipment
Heat Treatment Technology
Fitting of cylinder block and valve plate

About Factory

Belparts have a large workshop for excavator parts producing, from material cutting, welding, heating treating, assembling, debugging, painting, testing, every part we will confirm before leaving the factory.

FAQ

1. If I only know the excavator model, but can not offer parts No., what should I do?

If possible, you can send us pictures of old products, nameplate or the size for reference.

2. What is the warranty of the parts after I purchased hydraulic axial piston pump & motor spare parts?

The warranty is 6/12 Months based on the item details.

3. How can I pay the order?

We can receive payment through T/T, Western Union, Paypal(for small amount), Alibaba trade assurance.

4. When will get the items after I place order?

Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock, we will inform you before placing the order.

5. How can I do if there is something wrong with the items?

First of all, I have confidence in the quality of our products, if you really found something wrong, pls provide pictures for us and we will check. After it is confirmed, pls return to us, we will offer the correct item.

6. What is your main products?

We are specialized in the excavator spare parts, such as travel motor gearbox/ass'y/parts, swing gearbox/ass'y/motor/parts, hydraulic pump assy/parts and gear parts. If you need other excavator parts, we also can supply as your requirements.
